Break Glass (ปุ่มกดออกฉุกเฉิน)

Break Glass ปุ่มกดออกฉุกเฉิน

ใช้สำหรับกรณีไฟดับ เป็นอุปกรณ์ช่วยปลดล็อคชุดกลอนให้เปิดออกได้

เมื่อเกิดเหตุการณ์ไม่คาดฝัน เอามือกดกระจกใสให้แตก Break glass จะส่งสัญญาณไปที่ชุดล็อคประตูทันที ประตูก็จะสามารถเปิดออกได้อย่างง่ายดาย

Emergency Door Release" Break Glass Double Pole - GREENFeatures:-Dimensions:88mm x 88mm x 55mm.-Current Rating: 12/24VDC 10a.-Provision of thread protection plugs.-Instant test operation by a special key.. This model is suitable for open or closed circuit fire oraccess system with central control equipment.Alternative terminals are provided for open or closed circuits.When wired for open circuit working, the circuit closes instantly whenpressed hard to break glass. Facilities are provided for conduit entries from top or bottom.The SPRINT manual call point is designed to meet the requirements ofBS5839 Part 2. The casings are moulded from engineered plastic with outstandingfeatures of high impact strength, high resistance to heat and with goodelectrical properties. All metal is of brass and phosphor bronze lifelong resistance against corrosion.

รายละเอียด:

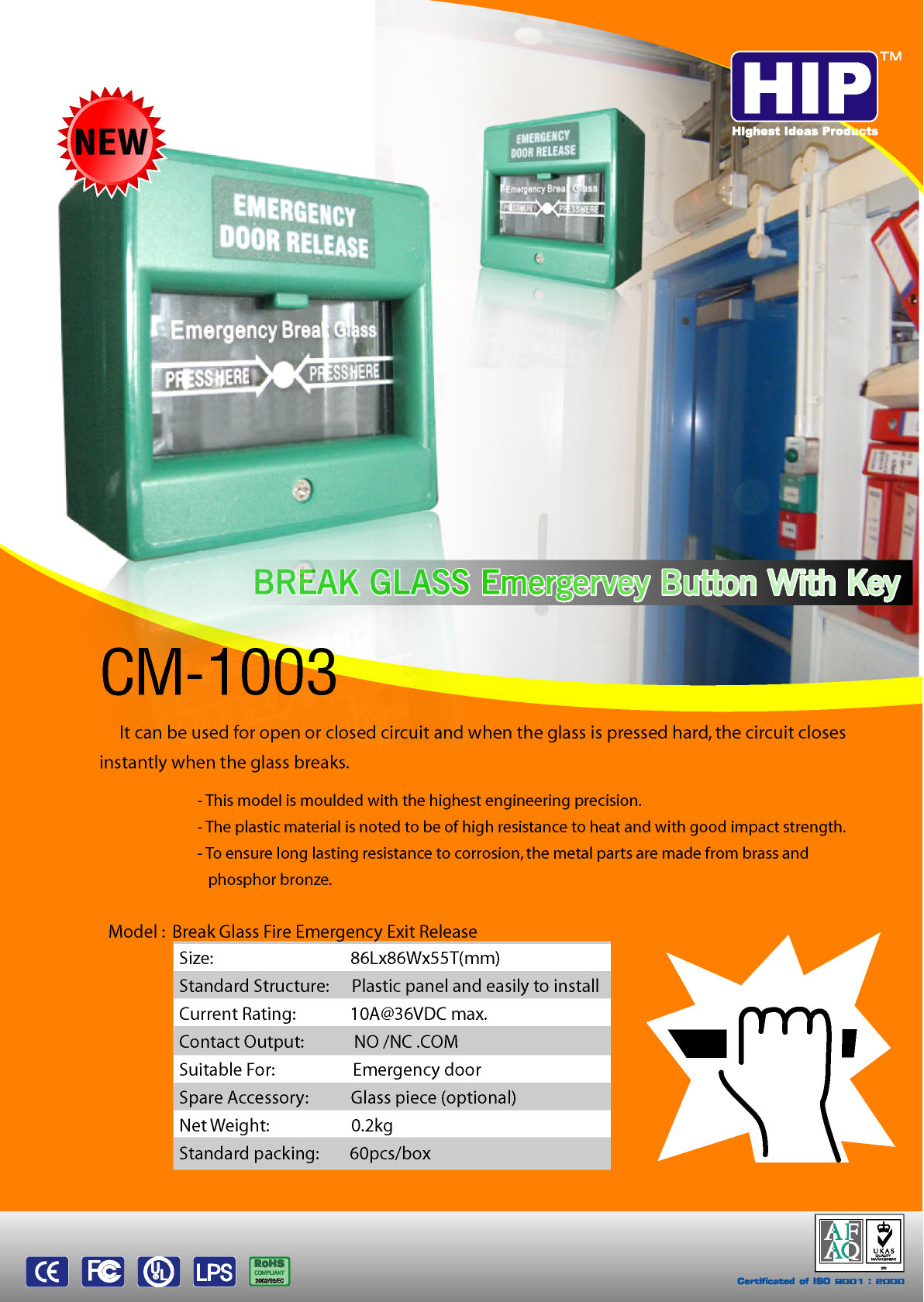

"Emergency Door Release" Break Glass

 Double Pole - GREEN

Features:

Emergency Door Release Glass Fire Break Alarm Button

Switch Status: normally open / normally closed

Standard Structure: fireproof material shell, easy to install

It supports electrical control or access control system

Perfect For: security doors, escape door, security system

Dimensions:88mm x 88mm x 55mm.

Current Rating: 12/24VDC 10a.

Provision of thread protection plugs.

Instant test operation by a special key..

This model is suitable for open or closed circuit fire or

access system with central control equipment.

Alternative terminals are provided for open or closed circuits.

When wired for open circuit working, the circuit closes instantly when

pressed hard to break glass.

Facilities are provided for conduit entries from top or bottom.

The SPRINT manual call point is designed to meet the requirements of

BS5839 Part 2.

The casings are moulded from engineered plastic with outstanding

features of high impact strength, high resistance to heat and with good

electrical properties. All metal is of brass and phosphor bronze life

long resistance against corrosion.
